Alien “Doc” Doucument Inlay

ALN-9741

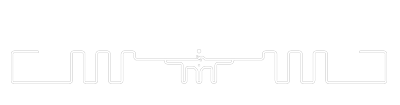

The Alien Technology® ALN-9741 “Doc” RFID inlay is designed for use on paper products such as documents and file folders where tags may be used in close proximity to each other.

Features Benefits

FEATURE BENEFIT DESCRIPTION
Dielectrically matched to papers, cardboards and similar printed stock. Allows tags to be placed on documents or files where these documents will be tightly packed together with many tags in close proximity to each other. These tags have minimal chance of shadowing (hiding each other) from the reader. Allows tagging of documents, files, booklets and paper products.
Extremely tolerant to close placement of multiple tags. Specifically designed to reduce shadowing of one tag over another.
Next generation Higgs™ 4 features and performance Rapid programming of serialized tags and excellent read/write performance A mass-market optimized tag with class leading read and write performance. Supports Alien’s BlastWrite™

These products are covered by one or more of the following U.S. patents: 7967204, 7931063, 7868766, 7737825, 7716208, 7716160, 7688206, 7659822, 7619531, 7615479, 7598867, 7580378, 7576656, 7562083, 7561221, 7559486, 7559131, 7554451, 7551141, 7542301, 7542008, 7531218, 7522055, 7500610, 7489248, 7453705, 7425467, 7417306, 7411503, 7385284, 7377445, 7364084, 7353598, 7342490, 7324061, 7321159, 7301458, 7295114, 7288432, 7265675, 7262686, 7260882, 7253735, 7244326, 7218527, 7214569, 7199527, 7193504, 7173528, 7172910, 7172789, 7141176, 7113250, 7101502, 7080444, 7070851, 7068224, 7046328, 6998644, 6988667, 6985361, 6980184, 6970219, 6952157, 6942155, 6933848, 6927085, 6816380, 6780696, 6731353, 6693384, 6683663, 6665044, 6657289, 6623579, 6606247, 6606079, 6590346, 6586338, 6566744, 6555408, 6527964, 6479395, 6468638, 6420266, 6316278, 6291896, 6281038. Other patents pending.

Applications

  • Paper/cardboard tagging Documents
  • File folders (e.g. medical, dental, legal etc.)
  • Envelopes
  • Booklets

Size

  • 3.74” x .32”
  • 95mm x 8.15mm

Download

ALN-9x41 Documents
FileAction
ALN 9841 Doc EC (2020 07 14)Download
ALN 9741 Doc Higgs4 (2020 07 14)Download
