Higgs 9

High Capacity GS1 Class 1 Gen 2 RFID Tag IC

Higgs 9
Featuring industry leading data integrity & reliability, Higgs™ 9 delivers cutting edge read / write sensitivty and flexible memory capacity designed to fit with today’s demanding applications and the evolving IoT information base.

Features Benefits

FEATURE DESCRIPTION BENEFIT

Sentinel™ Memory

Sentinel Memory

Detects and fixes single bit errors and flags dual bit errors.

Safeguarded data and immunity to typical sources of single bit errors (chip damage, low power etc.)

Read sensitivity

Up to -22.5 dBm

Allows smaller tags to be designed or larger read & write distances to be realized.

Write sensitivity

Up to -19 dBm

Best in class memory reliability

200,000 write cycles

Robust memory retention (twice that of competition

96-bit expandable EPC

Supports EPC size up to 496b for flexibility

Additional 400 bits allows storing of larger identifying information

688 bit user memory

User memory for storage of additional application data.

For applications requiring data beyond EPC (asset data, service history, usage info etc.)

48b UTID with lower 38b unique serial for SGTIN generation

48b UTID. Lower 38b are duplicated in the EPC for SGTIN generation.

For retail and general serialzation

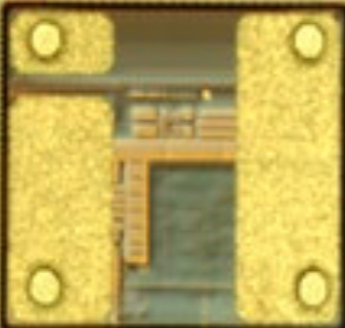

Larger “pads” for improved antenna connectivity

More contact area for antenna connectivity

Increased and more consistent yield inlay to inlay

These products are covered by one or more of the following U.S. patents: 7967204, 7931063, 7868766, 7737825, 7716208, 7716160, 7688206, 7671720, 7659822, 7619531, 7615479, 7598867, 7580378, 7576656, 7562083, 7561221, 7559486, 7559131, 7554451, 7551141, 7542301, 7542008, 7522055, 7500610, 7489248, 7453705, 7452748, 7425467, 7417306, 7411503, 7385284, 7377445, 7364084, 7353598, 7342490, 7324061, 7321159, 7301458, 7295114, 7288432, 7265675, 7262686, 7193504, 7173528, 7172910, 7172789, 7141176, 7113250, 7101502, 7080444, 7070851, 7068224, 7046328, 6998644, 6988667, 6985361, 6980184, 6970219, 6952157, 6942155, 6933848. Other patents pending.

Applications

  • Aviation
  • Automotive
  • Dynamic memory structure
  • High sensitivity

Highlights

  • Compliant to GS1 Class 1 Gen 2 and ISO/IEC 18000-6C
  • Worldwide operation in the RFID UHF bands (840-960 MHz)
  • 1024-Bits of NVM/RAM Memory
  • Up to 496-EPC Bits (nominally 96 bits)
  • Up to 688 User Bits
  • 48 Bit Unique TID
  • 32 Bit Access and 32 bit Kill Pass-
    words
  • Pre-Programmed with a unique, unalter-
    able 48-bit serial number
  • User Memory can be Block Perma-
    Locked as well as read password pro-
    tected in 256 bit Blocks
  • Low power operation for both read and
    program
  • QuickWrite™ / BlastWrite™ – High-speed
    chip & mass programming
  • Dynamic AuthenticationTM anti-cloning /
    anti-counterfeit technology
  • Exceptional operating range, up to 13m
    with appropriate antenna.
