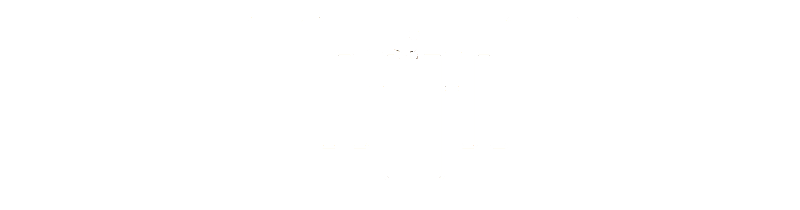

Alien Gecko

ALN-9825

Optimal performance in a compact form factor, the Alien Technology ALN-9825 “Gecko” RFID inlay offers world class range and sensitivity for dense Retail & Apparel applications.

Features Benefits

FEATURE DESCRIPTION BENEFIT
Compact far-field design 29x15mm size, compatible with all standard far-field RFID reader antennas (fixed and hand- held) Seamless operation with currently de- ployed RFID hardware
Optimized for dense read environment Realiable performance in dense tag populations Worry free readability whether items are spaced close or far apart
Reliable read / write performance with Sentinel™ memory Bit error correction, improved read/write sensitivity, robust memory retention and 200,000 write cycles (2X that of competition) Robust reliability of stored data, added protection against data loss/corruption

These products are covered by one or more of the following U.S. patents: 7967204, 7931063, 7868766, 7737825, 7716208, 7716160, 7688206, 7659822, 7619531, 7615479, 7598867, 7580378, 7576656, 7562083, 7561221, 7559486, 7559131, 7554451, 7551141, 7542301, 7542008, 7531218, 7522055, 7500610, 7489248, 7453705, 7425467, 7417306, 7411503, 7385284, 7377445, 7364084, 7353598, 7342490, 7324061, 7321159, 7301458, 7295114, 7288432, 7265675, 7262686, 7260882, 7253735, 7244326, 7218527, 7214569, 7199527, 7193504, 7173528, 7172910, 7172789, 7141176, 7113250, 7101502, 7080444, 7070851, 7068224, 7046328, 6998644, 6988667, 6985361, 6980184, 6970219, 6952157, 6942155, 6933848, 6927085, 6816380, 6780696, 6731353, 6693384, 6683663, 6665044, 6657289, 6623579, 6606247, 6606079, 6590346, 6586338, 6566744, 6555408, 6527964, 6479395, 6468638, 6420266, 6316278, 6291896, 6281038. Other patents pending.

Applications

  • Retail
  • Apparel
  • Compact form factor
  • Dense read reliability

Size

Dry Inlay

  • 1.142″ x 0.591″
  • 29mm x 15mm

Wet Inlay

  • 1.260″ x 0.709″
  • 32mm x 18mm

Download

ALN-9x25 Downloads
FileAction
ALN 9825 Gecko EC Datasheet (2018 05 14)Download
