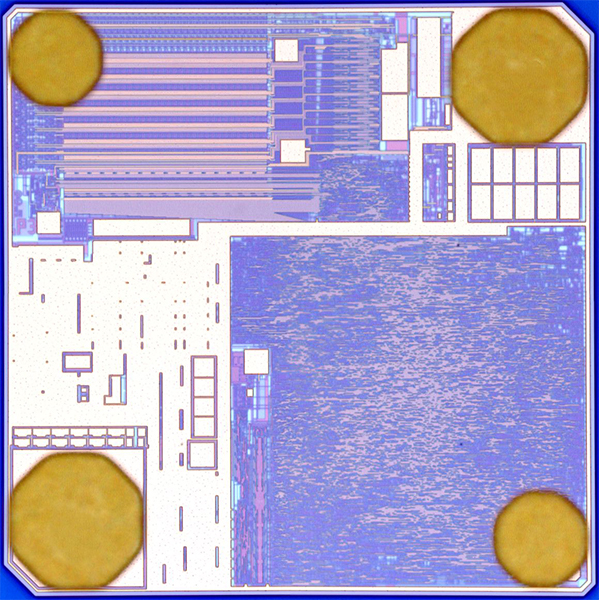

Higgs® 4
Mass-Market Optimized, RFID IC
- The industry’s highest performing, mass-market optimized, RFID IC
- Fully optimized for mass-market and retail applications
- Next generation serialization to speed enterprise wide serialization
Features Benefits
| FEATURE | BENEFIT | DESCRIPTION |
|---|---|---|
| Further Increases Alien’s Industry Leading Read Sensitivity | Industry leading tag performance especially in challenging RF environments. | Saves money: Reduces the number of read points and/or minimizes tag size. |
| Enhanced Write Sensitivity | Cutting edge write sensitivity. | Increased write performance, writing multiple words in a single command and writing to multiple-tags simultaneous, massively decreases the cost and time associated with programming hundred-of-thousands or millions or tags. |
| QuickWrite™ | The ability to write a complete bank of memory with one command. | |
| BlastWrite™ | An IC mass-encoding capability. Takes a single write cycle to encode multiple tags. | |
| Optimized Memory Footprint for Volume Applications & Modern Serialization Schemes | Flexible memory architecture that provides for the optimum allocation of EPC and User memory. | Provides an optimal memory system for volume applications while addressing the needs of enterprise wide serialization. |
These products are covered by one or more of the following U.S. patents: 7967204, 7931063, 7868766, 7737825, 7716208, 7716160, 7688206, 7671720, 7659822, 7619531, 7615479, 7598867, 7580378, 7576656, 7562083, 7561221, 7559486, 7559131, 7554451, 7551141, 7542301, 7542008, 7522055, 7500610, 7489248, 7453705, 7452748, 7425467, 7417306, 7411503, 7385284, 7377445, 7364084, 7353598, 7342490, 7324061, 7321159, 7301458, 7295114, 7288432, 7265675, 7262686, 7193504, 7173528, 7172910, 7172789, 7141176, 7113250, 7101502, 7080444, 7070851, 7068224, 7046328, 6998644, 6988667, 6985361, 6980184, 6970219, 6952157, 6942155, 6933848. Other patents pending.
Highlights
- Highly Integrated and Cost Effective
- Cost Optimized
- EPCglobal Gen2 and ISO/IEC 18000-6c
- 512-Bits of Memory
- 128 EPC Bits
- 128 User Bits
- 64 Bit Unique TID
- 32 Bit Access and 32 bit kill passwords
- Low power operation for both read and programming
- Exceptional operating range, up to 11m
- Advanced security and anti-cloning technology
- Pre-encoded with unalterable enterprise-wide serialization scheme
How To Buy
Download
Higgs 4 Documents
| File | Action |
|---|---|
| Higgs 4 Datasheet (2020 02 21) | Download |
