ALX-2525 & ALX-2530

Nexus Multiplexor & Controller

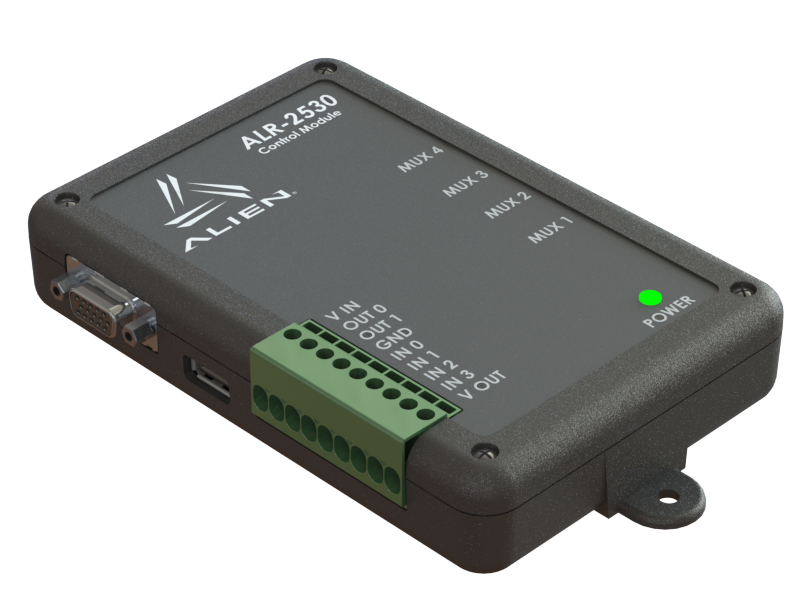

alx-2530
alx-2525

With full Capability, Scalability & Ease-of-use, Alien Nexus Multiplexor (MUX) brings expansion & management of added read points to a single reader, at a fraction of the cost of adding additional reader hardware.

  • Control up to 32 antennas with a single F800-series reader
  • Plug & Play configure & control with standard reader commands
  • Run & power GPIO peripherals direct from the controller
  • No custom / special software needed to run!
Need Feature Benefit
Easy multiple antenna management:

  • Installation
  • Configuration
  • Maintenance
  • Plug and play configuration & operability
  • Use any combination of Alien RFID antennas
  • Changes to settings are done with standard Alien Reader Protocol commands
  • Reduced time to deployment
  • Special software development not required
  • Use antennas that suit application
Multiple power options for Multiplexor and GPIO peripherals
  • User may choose to power NEXUS with +5VDC USB from F800 series reader, +12VDC from F800 or +6-24VDC external power supply
  • Same power options for GPIO peripherals (e.g. light stacks, motion sensors, switches, etc.) are available
  • Use what is right for the application and not choose based on limitation of options
  • No change to electrical wiring or power source for GPIO peripherals

What is Nexus?

The Alien Nexus multiplexor system enables plug & play deployment of up to 32 added read points / read zones to a single ALR-F800 series RFID fixed reader.

Continuing the Alien hallmark of ease of configuration, use and scalability, Nexus connects is able to be configured and operated using standard Alien Reader Protocol (ARP) commands, thus eliminating the need to have custom / special software written and maintained at additional cost.

Nexus consists of:

  • ALX-2530 Controller providing up to 4 Multiplexor connections
  • Each ALX-2525 Multiplexor (MUX) allows up to 8 antenna connections
  • The ALX-2530 Controller connects and powers up to 2 Output and 4 Input peripherals
  • Choice of 3 lengths of antenna coax cable and Controller cable for flexibility of antenna & component placement without need for service loops and excess cable management
