ALR-S350 Sled Handheld

Universal Mobile RFID without the Hassle


The ALR-S350 is a robust, simple to use UHF passive RFID sled designed for all day intensive use. The sled characteristics provides the flexibility to use your preferred operating system type/version while enabling access to the latest generation in communications infrastructure without being tied more slowly evolving monolithic device.

Benefits

Feature Enabled By Benefit
Long Battery Life
  • Double-capacity single battery
  • Low power electronics
    Up to 24 hours of intensive use
Robust Design
  • Dust and water ingress protection (IP54)
  • Solid drop tested design (1.5m/4,9ft)

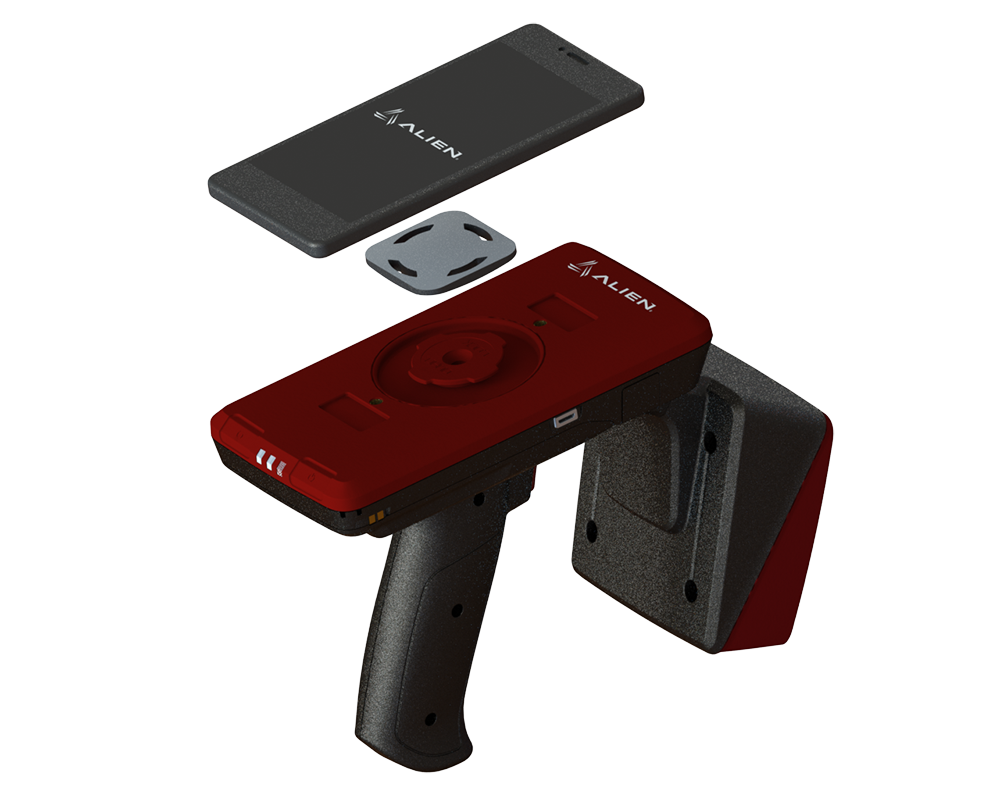

  • Quadlock® robust phone mounting
 Robust to normal knocks and drops despite being a sled form-factor
Simple to Use
  • Effortless Bluetooth 4.2 (Low Energy) connectivity
  • Single battery operation – only one battery to manage
  • Simple smart device pairing
  • No battery swapping required
  • Dual battery systems may not operate when one of the batteries is weak
Operating System and Communications Technology Agnostic
  • Sled design splits RFID from Comms and O/S
  • Apps dowloadable from the Apple App Store and the Google Play Store
  • Use Android or iOS
  • Use LTE of next gen 5G services
  • Use latest WiFi 802.11ac, ad etc
  • Use a phone, tablet or media player (e.g. iPod Touch)

These products are covered by one or more of the following U.S. patents: 7716208, 7716160, 7688206, 7671720, 7659822, 7619531, 7615479, 7598867, 7580378, 7576656, 7562083, 7561221, 7559486, 7559131, 7554451, 7411503, 7385284, 7377445, 7364084, 7353598, 7342490, 7324061, 7321159, 7301458, 7295114, 7288432, 7265675, 7262686, 7215249, 7214569, 7199527, 7193504, 7173528, 7172910, 7172789, 7141176, 7113250, 7101502, 7080444, 7070851, 7068224, 7046328, 6998644, 6988667, 6985361, 6980184, 6970219, 6952157. Other patents pending.

Standard features include:

  • Supports Apple iOS® and Google Android® via Smart Device
  • Enables LTE and 802.11ac/ad via Smart Device
  • ETSI 865.6–867.6 MHz or FCC/IC 902–928 MHz
  • ERP 2W/EIRP 3.3W
  • 2D imager supporting all major 1D / 2D barcodes
  • Ergonomic 320 g / 11.3 oz
  • Robust Quadlock™ physical smart device connection
  • Bluetooth Low Energy communications to Smart Device

Documents & Downloads

ALR-S350 Documents
FileAction
ALR S350 Sled Datasheet (2019 05 15)Download
ALR S350 User Guide (2018 04 25)Download
ALR S350 Developer Guide (2018 09 27)Download
ALR-S350 SDK
FileAction
ALR S350 SDK 18.04.04Download

Archive

For all versions of Alien Reader Software, Gateway and SDK, visit our archive.
