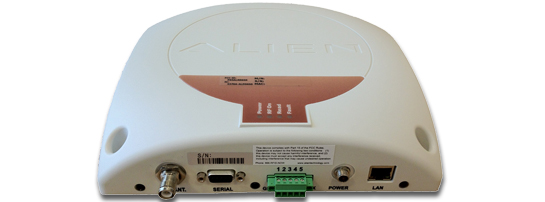

ALR-9650

Cost Effective Smart Antenna

Alien® ALR-9650 combines reader and circular polarized antenna into a single, simple-to-use, inexpensive and low-profile solution. A second antenna port enables 2-antenna applications.

Benefits

Benefit Enabled By: What does this mean to me?
Ease of Use
  • Integrated antenna
  • Alien Reader Protocol
  • Smart reader/autonomous mode
  • Alien Reader Control Architecture & Ruby
  • Power-over-Ethernet (PoE)
  • Easy to set up and deploy
  • No additional costly controllers
  • Less maintenance and overhead
  • Minimizes network infrastructure
  • Can be set up in areas with no power
  • Small footprint for tidy implementation
Cost Savings
Industry Leading Intelligence & Security
  • Crisis recovery: LAN and power loss
  • UDP heartbeat
  • Remote firmware management
  • Dynamic Authentication™
  • Built to handle real-world situations
  • Uniquely customizable
  • Industry leading anti-cloning

These products are covered by one or more of the following U.S. patents: 7716208, 7716160, 7688206, 7671720, 7659822, 7619531, 7615479, 7598867, 7580378, 7576656, 7562083, 7561221, 7559486, 7559131, 7554451, 7411503, 7385284, 7377445, 7364084, 7353598, 7342490, 7324061, 7321159, 7301458, 7295114, 7288432, 7265675, 7262686, 7215249, 7214569, 7199527, 7193504, 7173528, 7172910, 7172789, 7141176, 7113250, 7101502, 7080444, 7070851, 7068224, 7046328, 6998644, 6988667, 6985361, 6980184, 6970219, 6952157. Other patents pending.

Applications

  • Simple, low-profile solution for single antenna applications
  • Integrated, high-performance circular antenna — only 9”x 9”
  • POE eliminates cost of AC power drop
  • EPC Gen 2 Dense Reader Interoperable
  • Second antenna port enables 2-antenna applications
  • Manageable and upgradeable

Documents

Not seeing a download link below? You'll Need to register or login.

ALR-9650 Documents
File
ALR-9650 Datasheet (2016 11 22)
Hardware Setup Guide
Ruby Developer's Guide
Reader Interface Guide

Software

Not seeing a download link below? You'll Need to register or login.

ALR-9650 Software
File
Demo Software Gateway (v2.26.03)
Firmware 140701
Java SDK (v2.3.5)
.NET SDK (v2.3.2)
Ruby SDK

Archive

For all versions of Alien Reader Software, Gateway and SDK, visit our archive.
