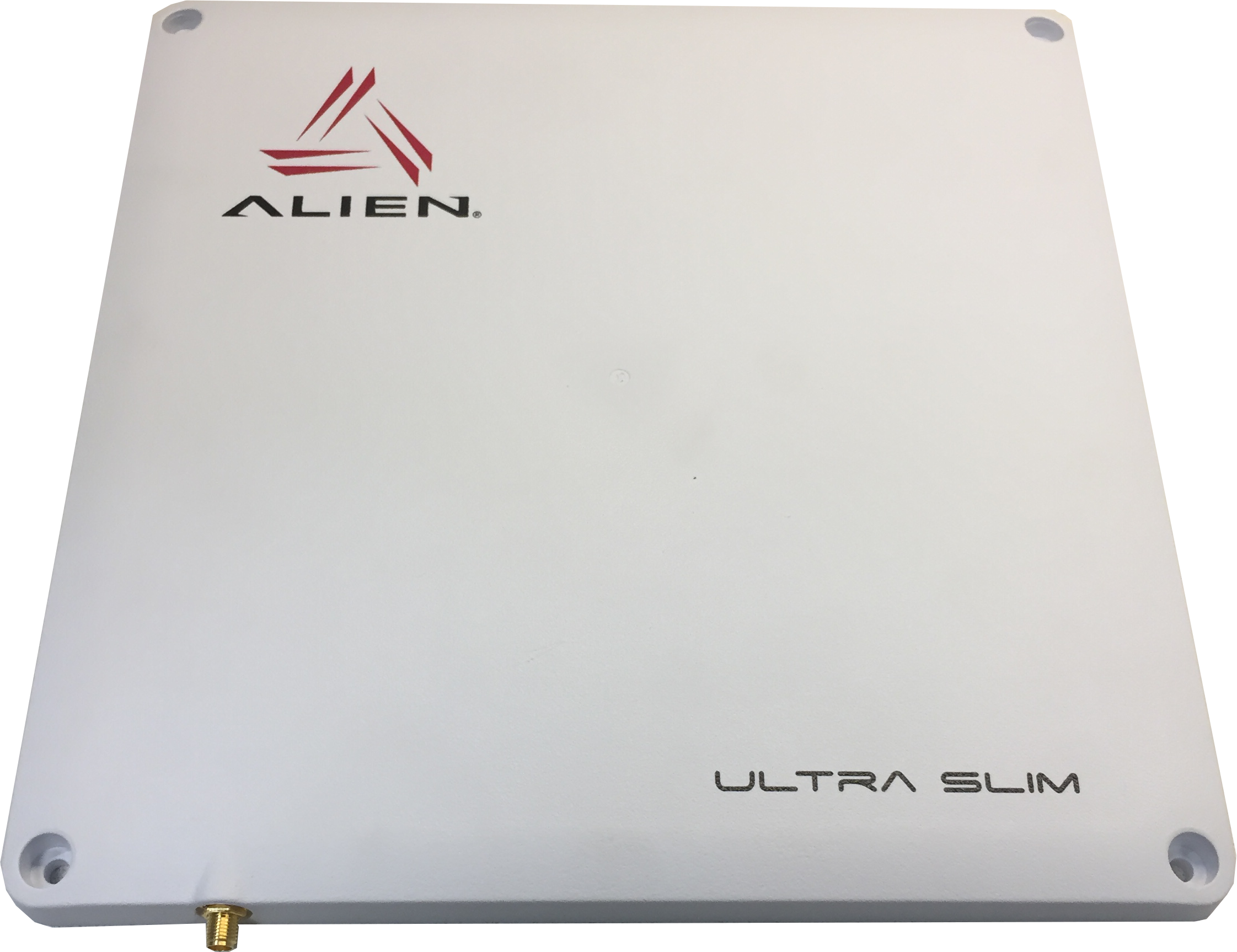

ALR-A1001
Ultra Slim 8.5dBic Antenna
The Alien Technology ALR-A1001 is a high-performance, circular-polarized antenna for use in demanding applications. The ALR-A1001 is a 8.5dBic gain antenna for use with Alien’s readers.
Benefits
Benefit | Enabled By: | What does this mean to me? |
---|---|---|
A thin antenna with no protrusions | Low profile, just 14mm/0.55” thick | Enables mounting where objects may otherwise hit or damage a larger antenna |
Built to keep the elements out | Weather and UV resistant and IP67 rating | Designed for a variety of inside and outside applications that demand a robust antenna |
Highly efficient antenna | Extremely low VSWR and axial ratio | Read tags in challenging environment and/or at greater distances. Very robust read capability regardless of tag orientation. |
These products are covered by one or more of the following U.S. patents: 7716208, 7716160, 7688206, 7671720, 7659822, 7619531, 7615479, 7598867, 7580378, 7576656, 7562083, 7561221, 7559486, 7559131, 7554451, 7411503, 7385284, 7377445, 7364084, 7353598, 7342490, 7324061, 7321159, 7301458, 7295114, 7288432, 7265675, 7262686, 7215249, 7214569, 7199527, 7193504, 7173528, 7172910, 7172789, 7141176, 7113250, 7101502, 7080444, 7070851, 7068224, 7046328, 6998644, 6988667, 6985361, 6980184, 6970219, 6952157. Other patents pending.
Features
- Very Low Profile
- Up to 9m / 29 ft. read range
- Extremely low VSWR and axial ratio
- Weather and UV resistant radome (IP67)
- SMA female connector
- RoHS EU 2002/95/EC compliant
Download
File | Action |
---|---|
ALR A1001 Antenna Datasheet (2017 02 28) | Download |
